Overview:
High Flow Water Cooling Pump TA90E Features
130L high-flow for rapid coaling
Maximum pressure 3Bar, efficient working point 51L@23M
Intelligent frequency conversion control
Extreme low temperature cold starting at -40°C, stable flow
20,000 hours long lifetime
Typical Applications
Liquid cooled EV charging stations
Servers cooling
Chiller
Thermal management
Laser cooling
Medical cooling
Specifications:
| Max Flow Rate | 130L/MIN |
| Max Static Lift | 32M |
| Rated Voltage | 48V |
| Motor Type | brushless DC motor |
| Liquid Temperature | -40-80°C |
| Ambient temperature | -40%~55°C |
| Pump Theory | Centrifugal pump |
| Media | Pure Water |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| Power Supply | DC power supply, battery |
| Customized functions | PWM,FG(RPM) signal wire |
| Remarks | Can’t dry-running, not Self-priming |
Parameter:
| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) | |
| TA90E | TA90E-A48-13030 | 130 | 48VDC | 7.5 | 32 | 350 | |

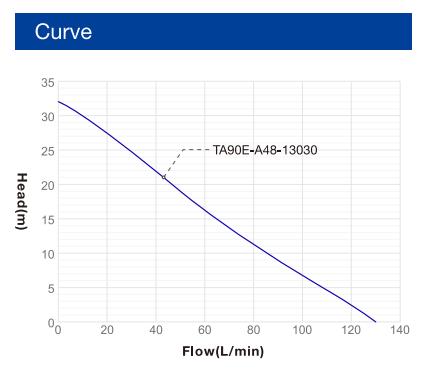

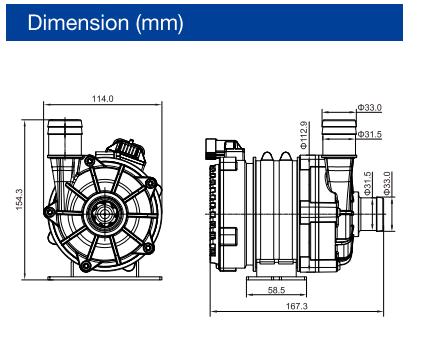

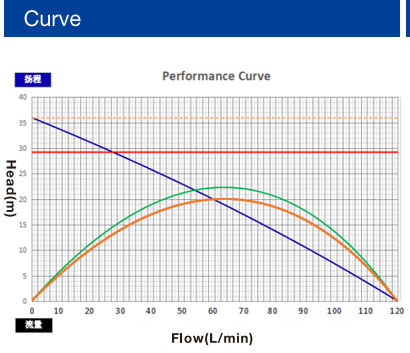

Curve & Dimension:
