High Pressure Liquid Cooling Pump TA70E Application:
Industrial & Commercial electronics cooling
Thermal management liquid cooling system
Server cooling / CDU cooling
Outdoor energy storage cabinet cooling
Energy backup Liquid-cooled cabinet
EV charger liquid-cooling system
Fuel cell system
High Pressure Liquid Cooling Pump TA70 Features:
DC brushless motor, long life
Can work continuously for 24 hours/day
Liquid: pure water ,antifreeze,coolant
Advanced magnetic drive technology, static seal, no leakage
Optimized design of motor, extremely small temperature rise
Overvoltage/undervoltage protection, reverse connection protection, overcurrent protection, stall protection(customizable)
Professional electronic component design
Low power consumption, zero maintenance
Specifications:
| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TA70E-A24-4030 | 40 | 36 | 24 | 6.2 | 150 |
| TA70E-A24-4238 | 42 | 38 | 48 | 3.6 | 170 |
OEM Customization Available
Technical data
| Model | TOPSFLO TA70E |
| Motor Type | Brushless DC Motor |
| Ambient Temperature | -40～55℃ |
| Liquid Temperature | -40~80℃ |
| Media | Water, Antifreeze, Coolant, Glycol, Dielectric coolants. etc |
| Working Voltage Range |
24V: 12~28V 48V: 36-60V |
| Maximum System Pressure | 1.8MPa |
| Ideal Life Time | >20000 Hours |
| IP Level | IP67 |
| Coil Insulation class | Class F |
| Certification | CE, REACH, RoHS, UL(UL certification in progress; UL-compliant customization capability available) |
| OD(inlet / outlet) | 20mm / 20mm OEM Customization Available |
| Material | Head / Body / Pump chamber: PPS+ GF O-Ring: EPDM Shaft: Precision Ceramics Bearing Sleeve: Graphite Gasket: Precision Ceramics+stainless steel |
| Working Mode | Continuous |
| Power Supply | DC power supply |
| EMC | Good electromagnetic compatibility, low EMI and high immunity |
| Protection Functions | Over-Voltage Protection, Lower-Voltage Protection, Dry-running Protection, Over-Temperature Protection, Over-Current Protection, Blocked-Protection, Polarity Protection, Constant Power Output |
| Functions | TA70E Supports PWM speed control and FG (RPM) signal feedback, enabling precise flow regulation and real-time performance monitoring. |
| Remarks | Can't dry-running, not self-priming |
Parameter:

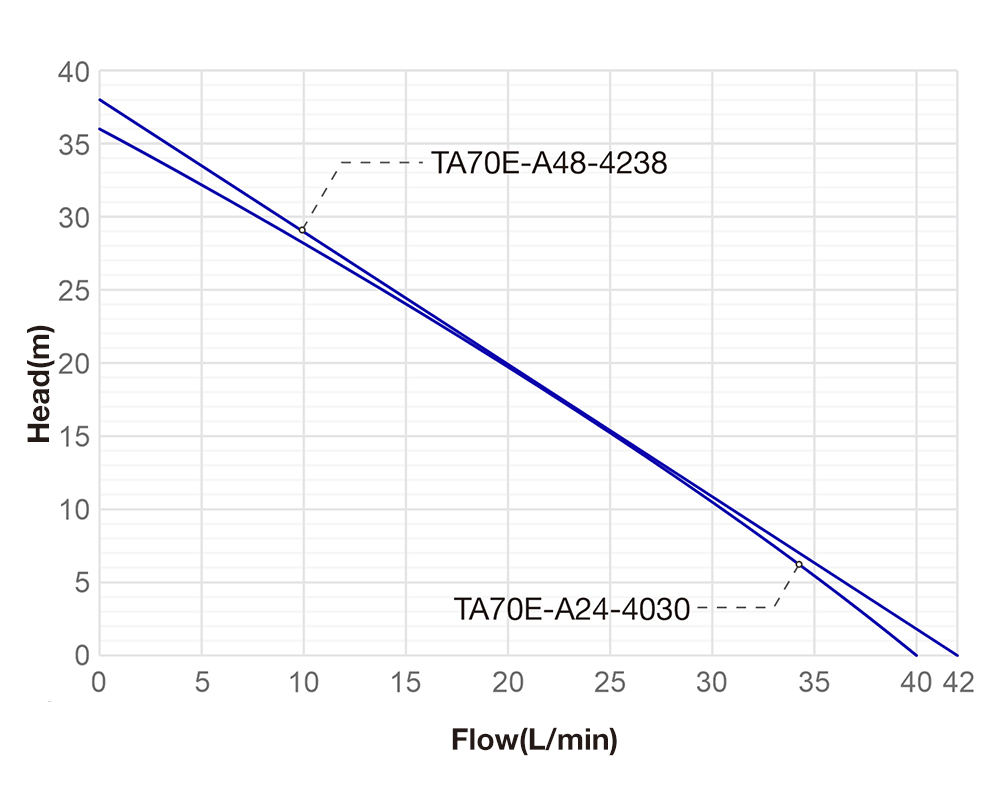

Curve & Dimension:
