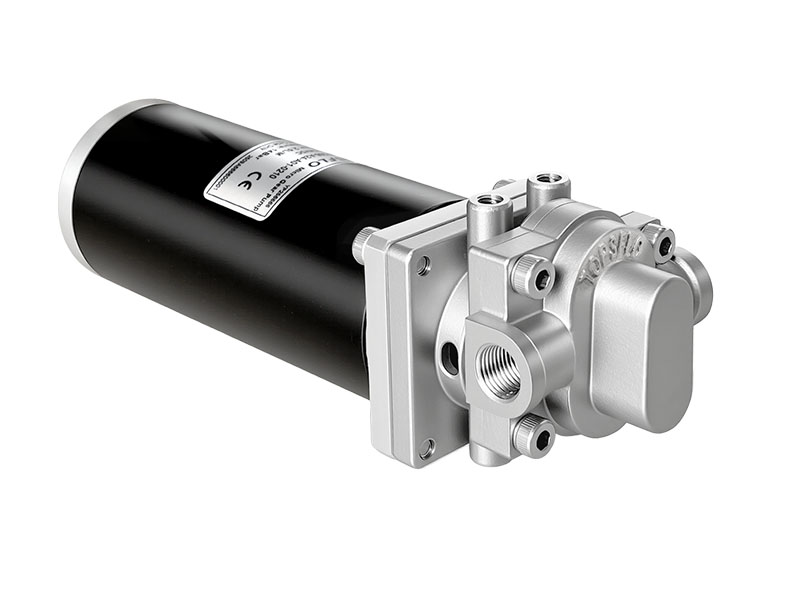

High Pressure Micro DC Gear Milk Pump TG06-A Features

1. Five Food-Contact Certifications for Global Market Access

The wetted components meet five food-contact certification requirements: NSF, LFGB, FDA, BPA-Free, and GB 4806, covering the three major markets of North America, Europe, and China. Food-grade material selection, combined with precisely optimized axial and radial clearances, ensures consistent, high-pressure fresh milk delivery without compromising performance to achieve material compliance.

2. Streamlined Flow Paths, No Residue — Corrosion-Free Performance Under Frequent CIP Cleaning

A streamlined, carefully engineered internal flow path minimizes dead zones and crevices, while optimized surface roughness enables fast, thorough rinsing and cleaning. The wetted components resist acidic and alkaline cleaning solutions. Validated through 1,000 hours of accelerated clean-in-place (CIP) testing, they exhibit no blistering, swelling, or discoloration. They have also passed dedicated validation for frequent daily cleaning cycles in commercial machines.

3. Adjustable 20–100% Duty Cycle — Precise Control and Temperature Resistance

High-precision involute gears ensure constant displacement per revolution. An optimized flow path reduces pressure losses, while micron-level gear-meshing and end-face clearances tightly control internal leakage. Combined with smooth motor operation, these features deliver a linear flow response across the full 20–100% duty-cycle range. Dispensed milk weight and temperature deviations remain controlled across different cup sizes, ensuring consistent taste in every cup.

4. Distinctive Imported Seal Design — No Milk Leakage During Continuous Dispensing

Designed for coffee machines used in chain cafés, the TG06-A features a specialized compensating mechanical seal. Imported seal materials provide ultra-low friction to reduce power loss and heat generation, while automatically maintaining optimal contact pressure as wear occurs. A stainless steel pump head paired with imported PEEK gears provides high rigidity and excellent self-lubrication. This structural design minimizes abnormal seal loads at the source, ensuring zero leakage and no milk seepage at pressures of 10 bar.
