Overview:
High Pressure DC Gear Pump TG-06 Features
An Ultra-compact design with small size and light weight,
saving installation space
Wetted materials meet FDA standards, which is safe for
direct food contact
Low pulsation with smoother water flow
Easy maintenance and reliable work
Low fluid loss and high pressure
High Pressure DC Gear Pump Applications:
Milk Frothing
Milk Frothing
Espresso Machine
Syrup Dispensing
Beverage Dispensing
Wine Dispensing
Specifications:
| Motor Type | Brush DC motor |
| Max flow | 2.8L/min |
| Max pressure | 14Bar |
| Rated Voltage | 24V |
|
Liquid temperature
|
0~80°C
|
| Suction Lift (m) | Dry Suction Lift 1m; Wet Suction Lift 2m |
| Pump Theory | High Pressure Gear pump |
| Media: | A variety of liquid and beverage,mlk |
| Working Way | Interrupt |
| Functions | Self-priming |
Parameter:

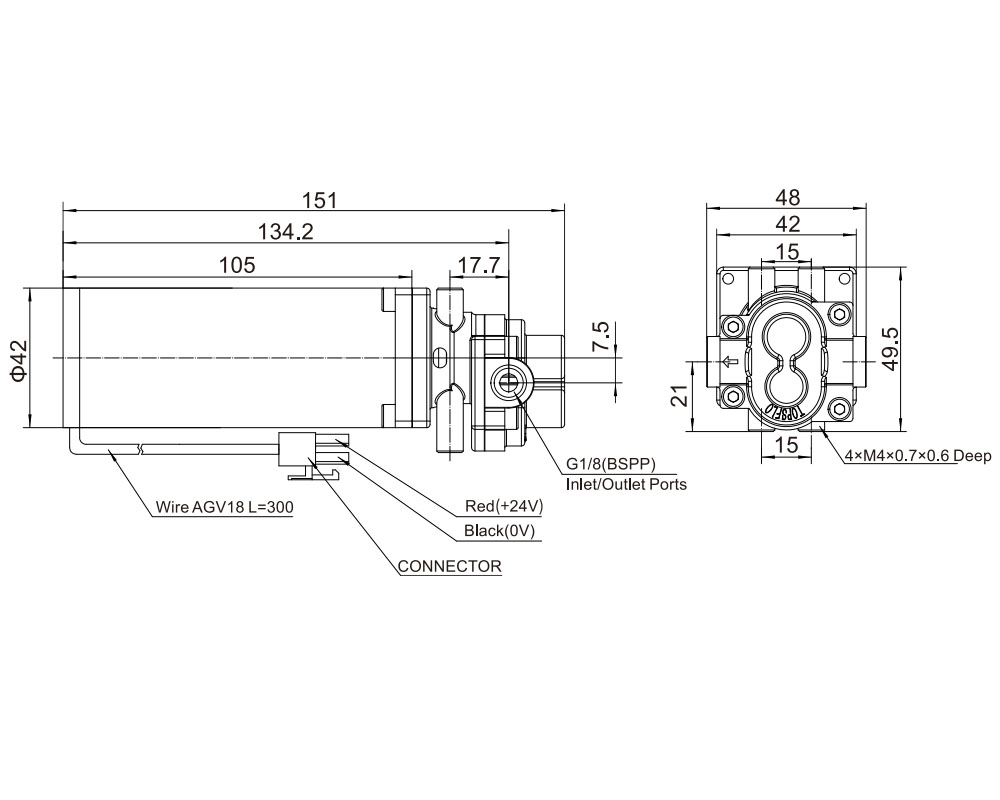

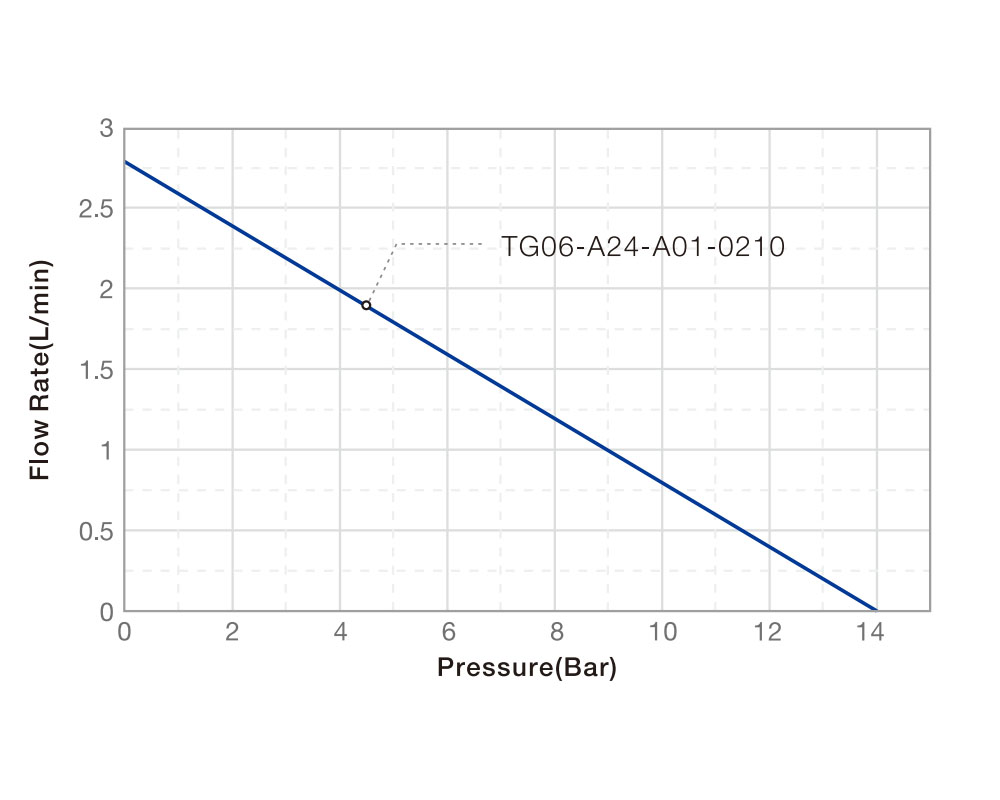

Curve & Dimension:
Awaiting for your inquiry, we will response you at the first time!
