Overview:
TG06-B | Programmable Pressure Profiling Gear Pump
0–12 bar
Programmable Pressure Profiling
High-Pressure, Zero-Leakage Design
Reliable Performance for Consistent Extraction
Low Pulsation. High Repeatability
Consistent Flavor, Shot After Shot
Excellent Contamination Resistance
Proven Durability in Hard-Water Conditions
Validated for 60,000 Cycles
Specifications:
| Model | Rated Volatage (VDC) |
No load Current (A) |
Max. Load Current (A) |
Head (Bar) |
Flow (L/min) |
| TG06-B24-A01-0215 | 24 | 1.2 | 6 | 15 | 2 |
Parameter:

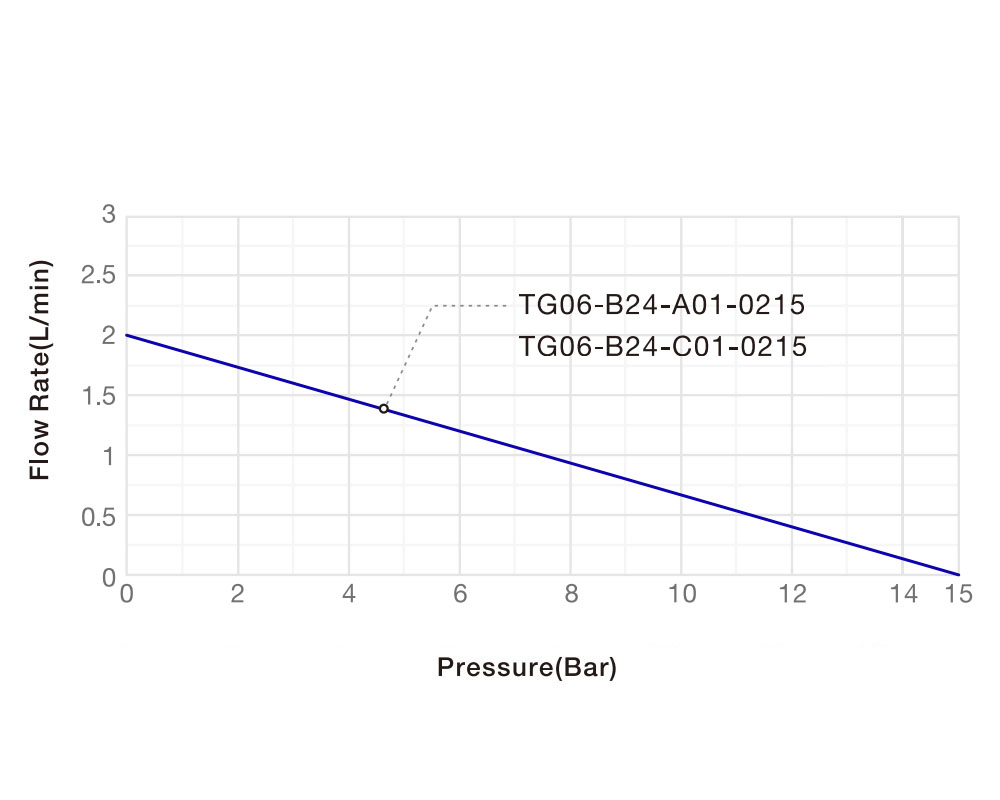

Curve & Dimension:
Awaiting for your inquiry, we will response you at the first time!
