Overview:
Direct Drive DC Micro Gear Pump Application:
This product uses the structure of slowdown, the use of brush motor drive, with a small volume of high pressure characteristics.
Applicable to the occasion of intermittent transmission of media. Widely used in coffee machine milk transfer system, Automatic Commercial Coffee Machine , Ice making Machines, Coffee Making Machines, Drinking Fountains, Wine Dispensing, Beverage Dispensing, Spraying, Sanitization, Food Equipment, Medical devices, Microplate Washer

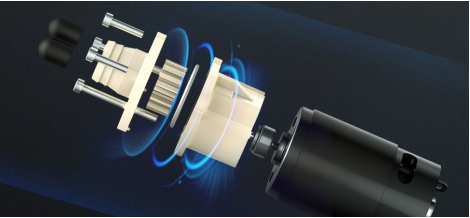

Direct Drive DC Micro Gear Pump TG-01 Features:
• An Ultra-compact design with small size and light weight, saving installation space

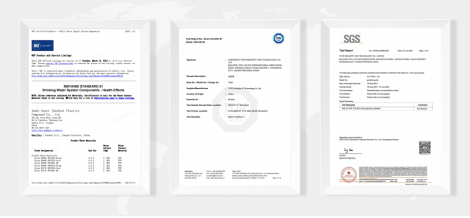

• NSF169, LFGB, FDA certified，which is safe for direct food contact
• Low pulsation with smoother water flow
• Easy maintenance and reliable work
• Low fluid loss and high pressure
Direct Drive DC Micro Gear Pump Application:
This product uses the structure of slowdown, the use of brush motor drive, with a small volume of high pressure characteristics.
Applicable to the occasion of intermittent transmission of media. Widely used in coffee machine milk transfer system, Automatic Commercial Coffee Machine , Ice making Machines, Coffee Making Machines, Drinking Fountains, Wine Dispensing, Beverage Dispensing, Spraying, Sanitization, Food Equipment, Medical devices, Microplate Washer
Specifications:
| Motor Type | Brush DC motor / Brushless motor |
| Max flow | 2.5L/min |
| Max pressure | 4 Bar |
| Rated Voltage | 12V / 24V |
| Fluid Temperature: | 0~80 ℃ |
|
Operating voltage range
|
12V pump range is 9~15V, 24V pump range is 18~28V
|
| Pump Theory | Gear pump |
| Media: | A variety of liquid and oil |
| Working Way | Interrupt |
| Functions | Self-priming |
Parameter:
| Model | Product Code | Rated Voltage | No load Current (A) | Max. Load Current (A) |
Head (Bar) |
Flow (L/min) |
| TG01 | TG01-A12-B01-0204 | 12 | 0.9 | 1.8 | 4 | 2.5 |
| TG01-A24-B01-0204 | 24 | 0.6 | 1.8 | 4 | 2.5 |
Curve & Dimension:
