Motor Type:Brush DC motorMax flow rate:water:0.4L/Min, gas:4L/MinWater lift:≥10M , Max vacuum: 70KpaVoltage:6V/12V/24VIdeal Life Time:3000 HoursFunctions:Can dry-running, Self-priming
Overview:

TOPSFLO micro diaphragm liquid /vacuum pumps are based on a simple principal,the circular power from the motor is converted into oscillating movement by aneccentric, which moves up and down its central point, this motion is then transferredto a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action.

The TF30A Series offers multiple component configurations allowing them to be used for either vacuum operation, liquid transfer, or alternating operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.

TF 30A pumps can be mounted in any position and can deliver up to 400 ml/min depending on the model and will operate against pressures of up to 1 bar.

Features:
Small and powerful
Micro design and maximum performance resulting from built-in technology are the outstanding characteristics of this product.
Self-priming and excellent for pressure
Sophisticated diaphragm technology and precise valve structures enable performances from 8.85 in .Hg suction and 14.5 PISG pressure.
Dry running, durable and maintenance free
The carefully considered design of these pumps allows them to be run dry and ensures safe operation and a long life even under the most severe conditions.
Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
Uncontaminated flow
No contamination of the media due to oil-free operation
Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ,material combinations for the parts which allows the corrosive gas to be pumped.

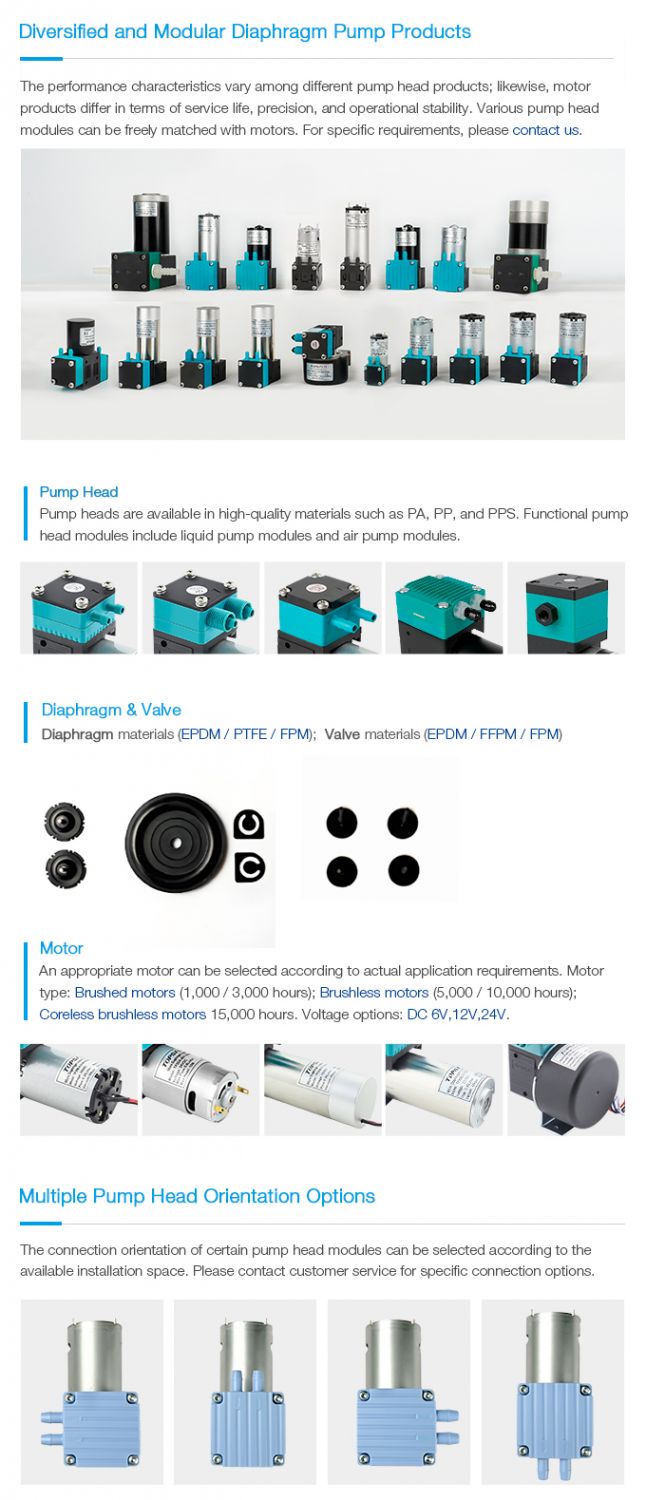

Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected

A Motor- Premium duty brush DC motor, lifetime 5,000hours
(Note: other lifetime choices also available: B Motor -1500hours normal brushed; C or D Motor- 15000hours coreless brushless; H Motor- 10000 brushless.)

Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Environmental/water treatment
Food/ toxicology
Laboratory
Cleaning industry
Printing
Fireplace

Specifications:

1 Motor Type Brush DC motor
2 Max flow rate water:1L/min ,0.6L/Min
3 Water lift ≥10M ,Max vacuum: 60Kpa70Kpa
4 Voltage 6V/12V/24V
5 Ideal Life Time 3000 Hours
6 Functions Can dry-running, Self-priming
7 Pump Theory Diaphragm pump
8 Ambient Temperature 41 to 158 F(5 to 70C)
9 Use Place Indoor
10 Media: Most Liquids and Gases
11 Noise Class form 1M 50dB /Max
12 Working Mode Continuous or Interrupt
13 Inlet OD 4.8mm/ID 2.6mm
14 Outlet OD 4.8mm/ID 2.6mm
15 Hose suggestion: ID 4.0mm
16 Dimension 75.5mm*30.8mm*54.5mm
17 Weight 200 g
18 Materials  pump head Nylon, membrane EPDM, valve EPDM

Parameter:

Model   Liquid Pump Rated Voltage No-load Current Max Head Max Vacuum Max Flow
(Item Number) (Item Number for mix-usage) (A) ( M ) (KPa) (L/min)
TF30A-A TF30A-A01-12-W101 12  0.4 ≥10M -60 1
  TF30A-A01-12-W1006 12 0.4 ≥10M -70 0.6


Curve & Dimension:


Dimension:
tf30a-a-dimension
